1308W 109A Square Size 130mm Brushless E Motor

Brand Name : OEM

Certification : CE/ISO/ROHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 25000pc/month

Delivery Time : 15-25days

Packaging Details : with export carton

Winding type : YWE

Hall effect angle : 120 Deg. Electrical angle

Radial play : 0.02mm/460g

End play : 0.08mm/450g

Max. radial force : 220N @ 20mm from the flange

Max. axial force : 60N

Insulation class : B

size : 130mm

Contact Now

1308W 109A Square Size 130mm Brushless E Motor

General specification

Winding type	YWE
Hall effect angle	120 Deg. Electrical angle
Radial play	0.02mm/460g
End play	0.08mm/450g
Max. radial force	220N @ 20mm from the flange
Max. axial force	60N
Insulation class	B
Dielectric strength	500VDC for one minute
Insulation resistance	100MΩ min., 500VDC

Performance Data

Number of poles		4
Number of phase		3
Rated voltage	VDC	48
Rated speed	RPM	5000
Continuous stall torque	N.m	2.8
Rated torque	N.m	2.5
Rated power	W	1308
Peak torque	N.m	7.5
Peak current	A	109
Torque constant	Nm/A	0.07
Back E.M.F	V/KRPM	6.2
Rotor inertia	g.c㎡	2.4
Body length	mm	120
Voltage range	VDC	36～310
Speed Range	RPM	1000～5000
Weight	Kg	5

Description

Brushless DC Motors are widely used in such varied applications as office equipment, pumps, textile machines and much more.

Application:

solar project
automobile
communication
inkjet printer
pump
medical blower
security

1308W 109A Square Size 130mm Brushless E Motor

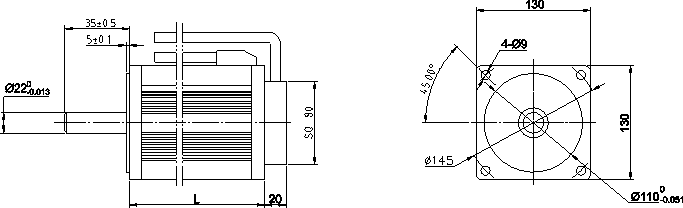

Dimensions in mm

Customization Options

Custom Shaft & Mounting Details:

All motors can be supplied on request with single or double ended shafts, shorter and longer shafts, as well as many other modifications. Custom Flanges and other mounting details can also be considered.

Encoders:

All motors can be supplied on request with a variety of encoder options and resolutions.

Brakes:

All motors can be supplied with electro-magnetic parking brake, with or without hand release.

Cable Harness:

All motors can be supplied on request with custom cable harness and/or special lead-wires with or without connectors
